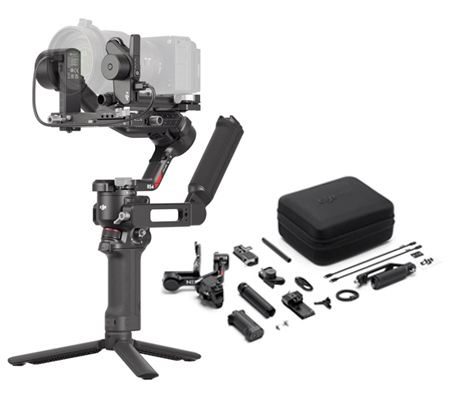

Included :
1x Gimbal
1x Extended Grip/Tripod
1x BG21 Grip
1x Quick-Release Plate
1x Focus Pro Motor
1x Focus Pro Motor Rod Mount Kit
1x Lens-Fastening Support
1x Briefcase Handle
1x Carrying Case
1x Focus Gear Strip
1x USB-C Charging Cable (40m)
2x Multi-Camera Control Cable USB-C (30m)
1x Screw Kit

Take a Closer Look

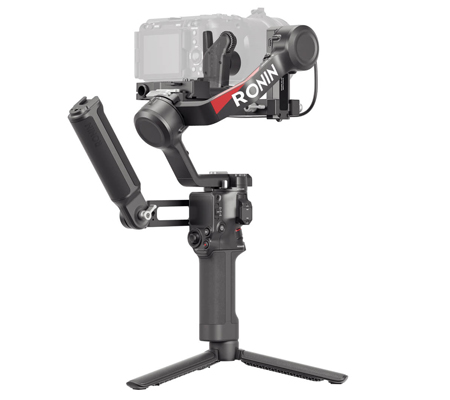

2nd-Gen Native Vertical Shooting
The newly designed gimbal horizontal plate eliminates the need for additional accessories. Easily switch to vertical shooting [1] for efficient vertical video creation.
Joystick Mode Switch for Zoom/Gimbal Control
Cinematographers can easily toggle between joystick modes, allowing them to control either the gimbal movement or the lens zoom via the joystick for a native zoom experience. [2]
RSA Communication Port for Extensive Control Ecosystem
DJI RS 4 introduces an RSA communication port, which allows for the connection of accessories such as the DJI RS Tethered Control Handle and third-party accessories. [3]
High-Capacity Battery Grip for Approx. 2.5x Battery Runtime [4]
The new BG70 High-Capacity Battery Grip [3] can extend RS 4's battery runtime to 29.5 hours. [5] It also supports powering camera and accessories with up to 18 W via the USB-C port.
Teflon™-Coated Axis Arms for Smoother Balancing
Reduced friction aids in smoother balancing and a fine-tuning knob on the tilt axis moves the camera forward and backward for precise, millimeter-level balancing.

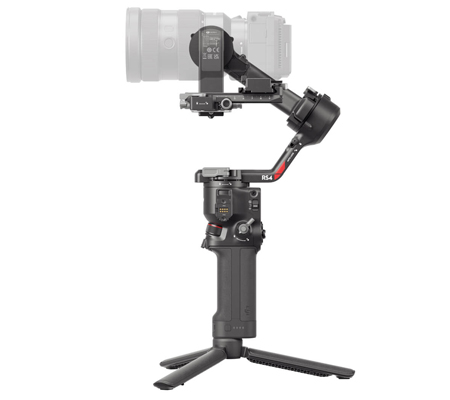

3kg (6.6lbs) Payload Capacity With Extended Tilt Axis
In addition to a high-payload capacity, the tilt axis has been extended by 8.5 mm, allowing for mainstream mirrorless camera and lens combinations, and additional accessories.

Learn more

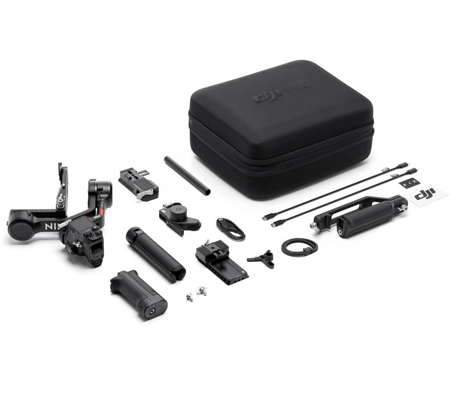

In the Box

Gimbal
× 1
BG21 Battery Grip
× 1
Quick-Release Plate (Arca-Swiss/Manfrotto)
× 1
Extended Grip/Tripod (Plastic)
× 1
Lens-Fastening Support
× 1
Multi-Camera Control Cable (USB-C, 30 cm)
× 2
Screw Kit
× 1
Briefcase Handle
× 1
USB-C Charging Cable (40 cm)
× 1
Carrying Case
× 1
Focus Pro Motor
× 1
Focus Pro Motor Rod Mount Kit
× 1
Focus Gear Strip
× 1

Specs

Peripheral

Accessory Port
Ronin Series Accessories (RSA)/NATO Ports
1/4"-20 Mounting Hole
‌Cold Shoe
Video Transmission Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)

Battery
Model: BHX711-3000-7.2‌‌V
Type: LiPo 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. ‌When the gimbal is in motion, the operating time will be reduced.)
Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

Connections
Bluetooth 5.1
Charging Port (USB-C)

Ronin App Requirements
iOS 11.0 or above
Android 8.0 or above

Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

Tested Payload
3 kg (6.6 lbs)

Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s

Mechanical Range
Pan Axis: 360° continuous rotation
Roll Axis: -95° to +240°
Tilt Axis: -112° to +214°

Mechanical & Electrical Properties

Operating Frequency
2.400-2.4835 GHz

Bluetooth Transmitter Power
< 8 dBm

Operating Temperature
-20° to 45° C (-4° to 113° F)

Weight
‌Gimbal: Approx. 1066 g (2.35 lbs)
Grip: Approx. 203 g (0.45 lbs)
‌Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs)

Dimensions
‌Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
