Specification :

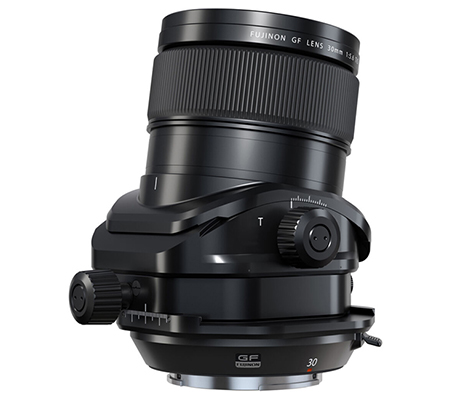

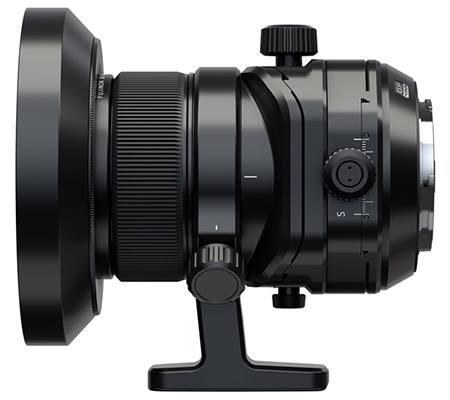

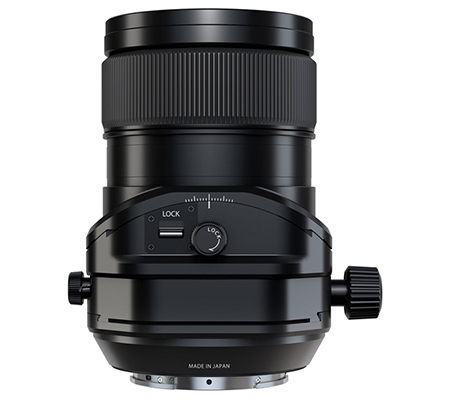

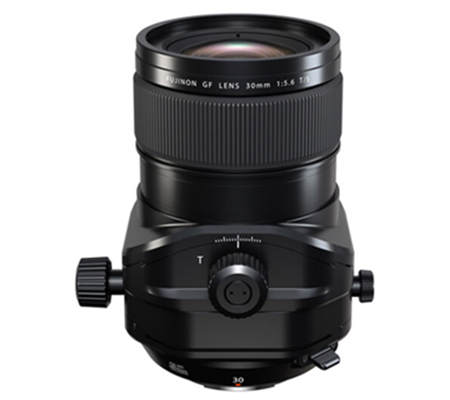

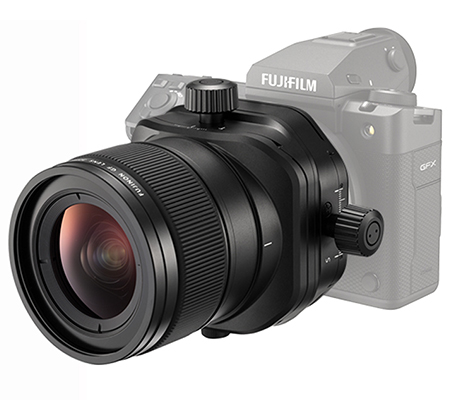

| Type | FUJINON GF30mmF5.6 T/S | |
| Lens configuration | 16 elements in 11 groups (includes 3 aspherical, 1 super ED and 2 ED elements) | |
| Focal length | f=30mm(24mm) | |
| Angle of view | 84.7° | |
| Max. aperture | F5.6 | |
| Min. aperture | F32 | |
| Aperture control | ||
| Number of blades | 9(rounded diaphragm opening) | |
| Step size | 1/3EV (16steps) | |
| Minimum focus distance(mesured from focal plane) | 0.3m | |
| Max. magnification | 0.21x | |
| Tilt range | ±8.5? | |
| Shift range | ±15mm | |
| Tilt scale | Ruled in 1? increments | |
| Shift scale | Ruled in 1mm increments | |
| Lens rotation | Locks at -90, 0, and 90 degrees with a click every 30 degrees | |
| T/S rotation | Locks at 0 and 90 degrees with a click every 45 degrees | |
| External dimensions : Diameter x Length*1 (approx.) | Φ87.1mmx138.5mm (The tilt/shift mechanism is 96 mm long) | |
| Weight*2 (approx.) | 1,340g | |
| Filter size | Φ105mm(uses adapter ring) | |
| Accessories included | Flont lens cap FLCP-77 Rear lens cap RLCP-002 Lens hood Adapter ring Adapter ring cap FLCP-105 Tripod collar foot Lens pouch | |
