Specification :

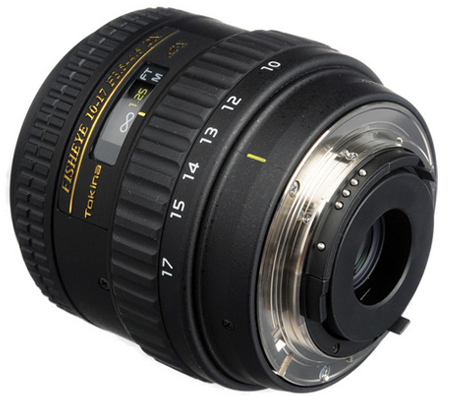

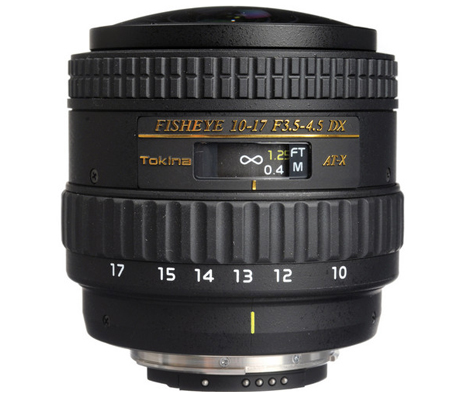

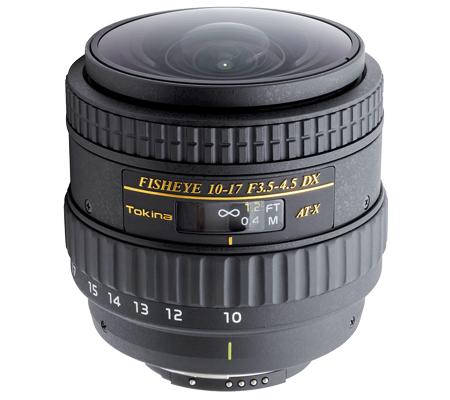

This ultra wide-angle Tokina AT-X 107 AF DX NH Fisheye 10-17mm f/3.5-4.5 Lens for Nikon delivers the ultimate in wide-angle drama for your Nikon camera. A 180° view at the 10mm setting takes in more than the human eye sees, with a typical dramatic curvature of field. At the 17mm end of the zoom, it's a very wide-angle lens.
This lens may be used with cameras using APS-C size sensors, and with cameras using full-frame sensors. A full corner-to-corner image can be achieved on a full-frame (FX) camera between approx. 14.5-17mm depending on the camera model--at 10-14mm the image doesn't cover the entire frame, and there's a semi-circular view. Additionally, this NH (no hood) version of the lens lacks a built-in lens hood in order to provide greater coverage and less vignetting on full-frame cameras, as well as to extend the lens's compatibility with underwater housings.

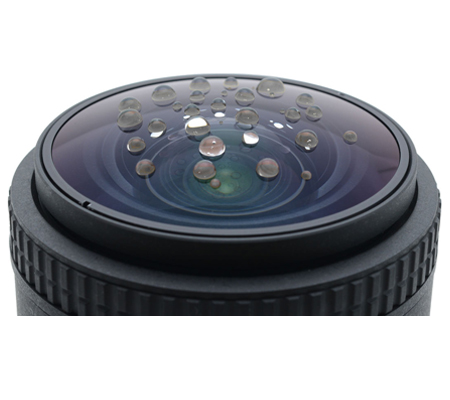

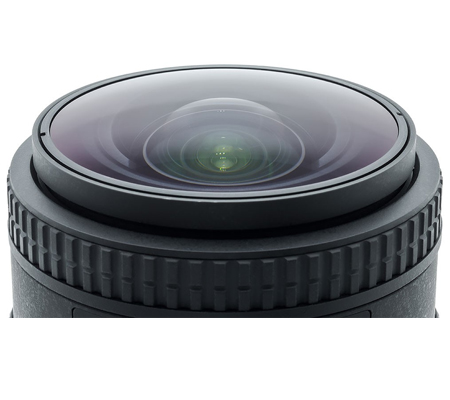

This very useful lens contains one super-low dispersion glass element, helping to make the lens compact, lightweight (12.3 oz/350g) and fast focusing. The front element has a Water Repellent (WR) optical coating which makes removing water spots and fingerprints much easier. The lens differs from the AT-X 107 DX in that the built-in hood has been removed allowing for a wider image area and more coverage on full-frame sensor (FX) cameras.
This lens' does not have its own auto focus motor and will only support AF when used on a camera whose body has an auto focus motor.
| Performance | |
|---|---|
| Focal Length | 10 to 17mm |
| Aperture | Maximum: f/3.5 to 22 Minimum: f/4.5 to 22 |
| Camera Mount Type | Nikon F |
| Format Compatibility | Nikon DX Nikon FX/35mm Film |
| Angle of View | 180° to 100° |
| Minimum Focus Distance | 5.51" / 14 cm |
| Maximum Reproduction Ratio | 1:3 |
| Optical Design | 10 Elements in 8 Groups |
| Diaphragm Blades | 6 |
| Features | |
|---|---|
| Image Stabilization | No |
| Autofocus | Yes |
| Tripod Collar | No |
| Physical | |
|---|---|
| Dimensions (DxL) | 2.75 x 2.79" / 69.85 x 70.87 mm |
| Weight | 12.35 oz / 350 g |
| Packaging Info | |
|---|---|
| Package Weight | 1.3 lb |
| Box Dimensions (LxWxH) | 6.5 x 4.7 x 4.6" |
