| Display?TFT |
| Transmission Type?2.4GHz digital frequency |
| Modulation?Digital modulation |
| Polar Pattern?Omnidirectional |
| Antenna?ln-built antenna |
| perating Range(without obstacles)?328' (100m) |
| Sampling Rate?48KHz |
| Frequency Response?20Hz-20KHz |
| Signal-to-Noise Ratio?>80dB |
| Maximum SPL?110dB SPL |
| Sensitivity?-39±2dB |
| Audio Input Connector?TX: In-built condenser microphone |
| Monitoring Connector?RX:3.5mm monitor port |
| Audio Output Connector?RX: 3.5mm auto-sensing output(TRS/TRRS) |
| Power Requirements?ln-built rechargeable lithium-ion battery |
| Battery Specification?TX:3.85V/495mAh / RX:3.7V/1600mAh |

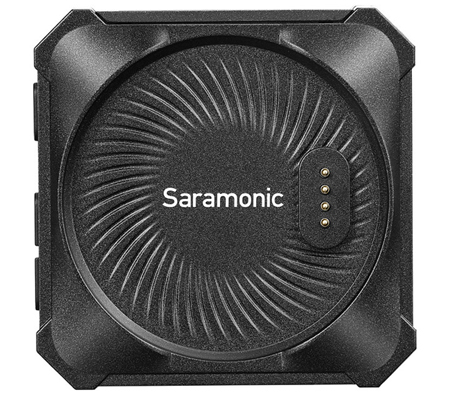

| Charging Connector?Tx: Charging contacts / RX: USB-C |
| Charging Time?RX: Approx.2.5 hours (using 5V/2A charger) |
| Battery Life(TX)?Approx. 5 hours(onboard recording enabled) / Approx.8 hours (onboard recording disabled) |
| Battery Life(RX)?RX:Approx.24 hours(One TX fully charged) |
| Memory?Tx:8GB |
| Weight?TX:1.06oz(30g) / RX:2.47oz(70g) |
| Dimensions?TX: ø1.85×0.49"(ø47×12.5mm) / RX:2.23×2.23×0.99"(56.6×56.6×25.2mm) |
| Operating Temperature?0? to +50? / -10? to +50? |
