Specification :

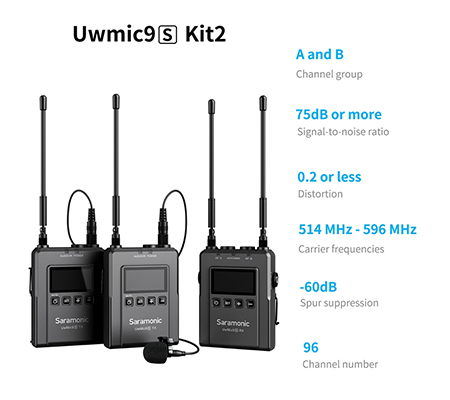

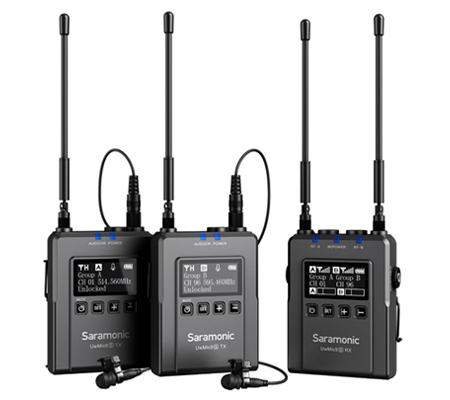

The Saramonic UwMic9s wireless microphone system provides a premium 2-person wireless audio solution for Broadcast &TV,ENG,filmmakers,vloggers,mobile journalists and content creators for a remarkable price,It is an easy-to use,high-quality and flexible UHF system,The external input allows the receiver to be connected to a mic or line level device,such as a shotgun microphone,mixer,recorder or music player to capture additional sound or music.The system can be powered through its USB-C ports,allowing it to run for numerous hours on a USB-C 5V power bank.

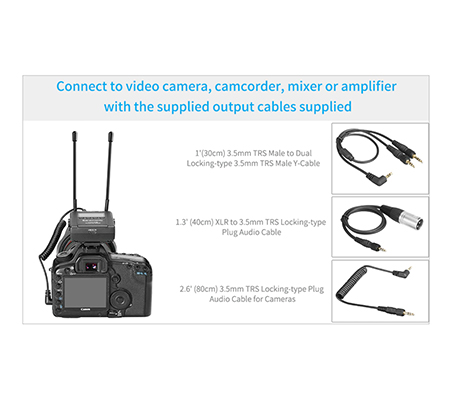

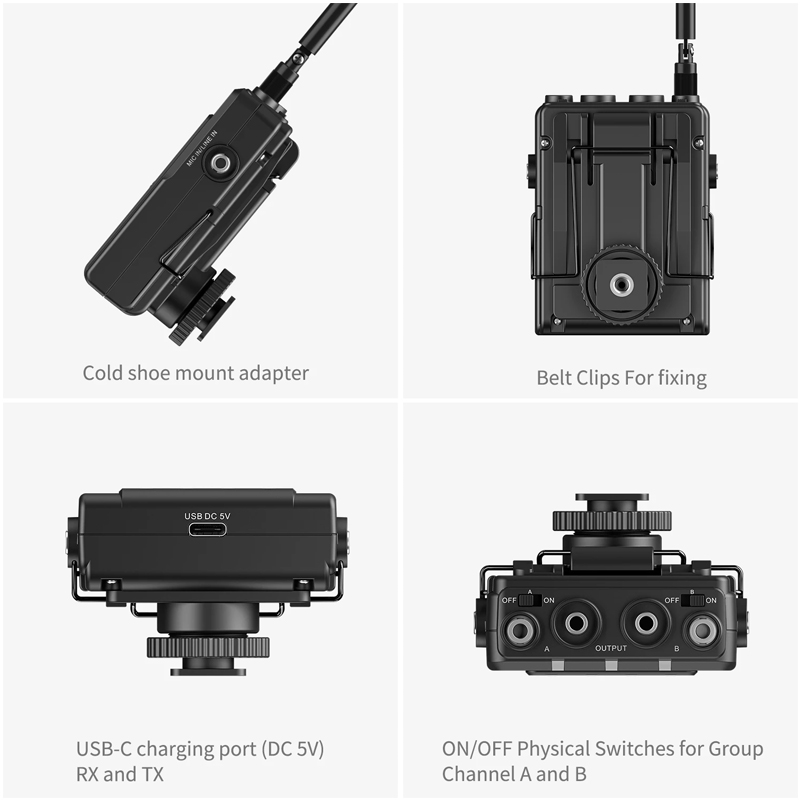

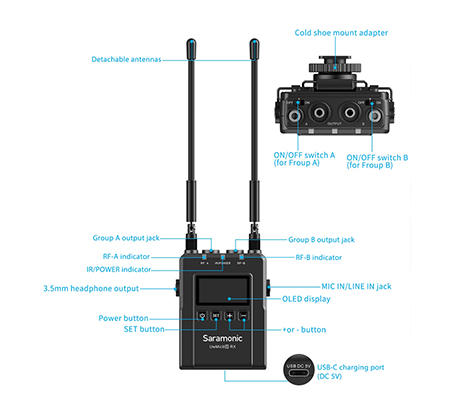

The Saramonic UwMic9s RX is a camera-mountable dual-channel UHF wireless receiver.It features wide switching RF bandwidth,a high-contrast OLED display and infrared,synchronization between transmitter and receiver.The two detachable antennas can be rotated 360° for better reception.The receiver’s output can be toggled between mono and stereo modes,The low-cut function on the receiver minimizes low-frequency rumble.
The Saramonic UwMic9S-TX9S is a mountable body-pack transmitter.It features an easy-to-read OLED display,a detachable antenna and built-in rechargeable batttery.with the line input and mic input jack,it can accept audio from the included 3.5mm locking lavalier mic or other line-level devices,A short press of the power button mutes the mic between takes.The locking function prevents the transmitter from being muted or turned off accidentally.
| Channel number: | 96 |
| Frequency Response: | A and B |
| Oscillator type: | PLL synathesizer |
| Audio output connector: | 3.5mm mini jacks(A and B channel output), 3.5mm headphone output |
| Audio input connector? | 3.5mm mini jack(MIC IN/Line In jack) |
| Antenna: | 1/4λ wire antenna |
| Audio output level: | -60 dBV |
| Headphone output level: | 30mW(16Ω) |
| Receive frequencies: | 514MHz-596MHz |
| Receive sensitivity: | -95dBm |
| Signal-to-noise ratio: | 75dB or more |
| Reference deviation: | ±5kHz(-60 dBV,1kHz input) |
| Frequency response: | 40Hz to 18kHz(+/-3dB) |
| Distortion | 0.2% or less |
| Spur suppression | -60dB |
| Reference audio input level | -60dBV(Mic input,0dB attenuation) |
| Built-in battery capacity | 2000mA |
| Power Requirements | Built-in Li-ion Battery or USB-C DC 5V |
| Continuous use time | 8 hrs |
| Dimension | 220×64×25mm |
| Weight | 193g(6.8oz) |
| Operating temperature | 0? to 50? |
| Storage temperature | -20? to +55? |
| Channel number: | 96 |
| Frequency Response: | A and B |
| Oscillator type: | PLL synathesizer |
| Carrier frequencies? | 514MHz-596MHz |
| Reference deviation? | ±5kHz(-60 dBV,1kHz input) |
| Signal to noise ratio? | 75dB or more |
| Spur suppression | -60dB |
| Voice delay | 12ms |
| Antenna | 1/4λ wire antenna |
| Audio input connector | 3.5mm mini jacks(MIC IN and LINE IN jack) |
| Reference audio input level | -60dBV(MIC input,0dB attenuation) |
| Distortion | 0.2% or less |
| Built-in battery capacity | 2000mA |
| Power Requirements | Built-In Li-ion Battery or USB-C DC 5V |
| Continuous time | 8hrs |
| Dimensions | 220*64*25mm |
| Weight | 157g(5.5 .oz) |
| Operating temperature | 0? to 50? |
| Storage temperature | -20? to +55? |
