Specification :
| INPUTS | MIC/LINE (mono) | 2 |
| OUTPUTS | MASTER OUT | 1 |
| PHONES | 1 |

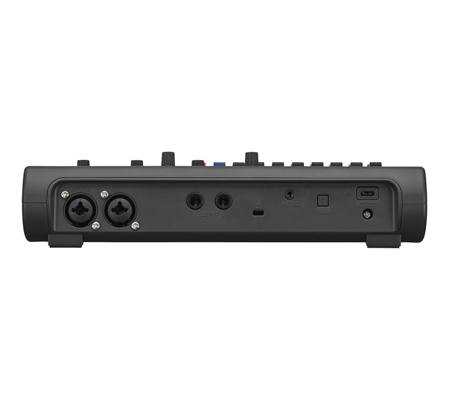

| MIC/LINE (MONO) | Connectors | 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT? |
| Input gain | +6 ~ +50 dB | |
| Input impedance | XLR: 3.9 kΩ TRS: 3.9 kΩ/1 MΩ (when Hi-Z ON, INPUT 1 only) | |
| Phantom power | +48 V (switchable separately for INPUTS 1 and 2) | |
| Equivalent input noise | –121 dBu or less (IHF-A) at +50 dB/150 Ω input | |
| Frequency response | −1.0/+0.5 dB: 20 Hz – 20 kHz |
| MASTER OUT | Connectors | 2 TRS phone jacks (balanced) |
| Maximum output level | +14 dBu | |
| Output impedance | 200 Ω | |
| PHONES | Connectors | 1 stereo 3.5mm mini jack |
| Maximum output level | 45 mW + 45 mW (into 32 Ω load) | |
| Output impedance | 10 Ω |
| Maximum simultaneous recording tracks | 2 | |
| Maximum simultaneous playback tracks | 8 | |
| Recording format | 44.1kHz, 16/24-bit, mono/stereo WAV | |
| Recording media | Cards compatible with microSDHC specifications 4 GB – 32 GB | |
| Cards compatible with microSDXC specifications 64 GB – 1 TB |
| EQ | High: 10 kHz, ±12 dB, shelving | |
| Middle: 2.5 kHz, ±12 dB, peaking | ||
| Low: 100 Hz, ±12 dB, shelving | ||
| Pan | L100 – R100 |
| Input Dynamics | Comp/Limiter/Gate | |
| Patch memory effects | 3 types can be used simultaneously | |
| 50 patch memories | ||
| Guitar Lab supported | ||
| Can be assigned and used as an insert (input) or send effect | ||
| Dedicated send effects | 10 types of spatial effects |
| Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD |
| Time signatures | 3/4, 4/4, 6/8 | |
| Tempo range | 40.0 – 250.0 BPM |
| Sound source format | PCM | |
| Number of loops | 150 |
| Sound source format | FM | |
| Polyphony | 8 | |
| Number of sound types | 18 (and a PCM drum kit) |

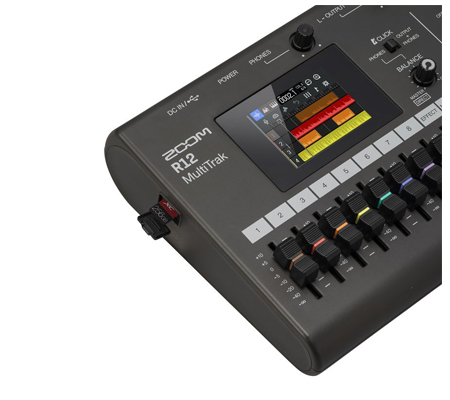

| 2.4" (320×240) full-color touchscreen LCD |
| CONNECTOR | USB Type-C | |
| Note: Use a USB cable that supports data transfer. USB bus power is supported. | ||
| AUDIO INTERFACE FUNCTION | 2-in/2-out or 2-in/2-out (iPad) | USB 2.0 Full Speed |
| 44.1 kHz, 16/24-bit | ||
| 2-in/4-out | USB 2.0 High Speed | |
| 44.1 kHz, 16/24-bit | ||
| MASS STORAGE FUNCTION | Device | USB 2.0 High Speed (5 V/200 mA power supplied when host) |
| GUITAR LAB CONNECTION | USB 1.1 Full Speed | |
| DAW CONNECTION (CONTROL SURFACE) | USB 1.1 Full Speed | |
| MASS STORAGE FUNCTION | Host | USB 2.0 High Speed (5V/200 mA power supplied) |
| USB MIDI KEYBOARD CONNECTION | USB 1.1 Full Speed (5 V/200 mA power supplied) |

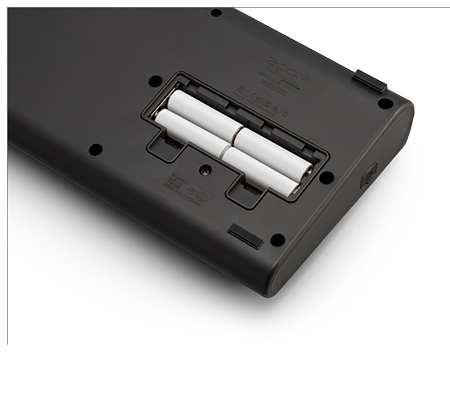

| Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH) | |
| AC adapter: ZOOM AD-17 (5V/1.0A) |
| During playback with +48V off and 32Ω headphone load | |
| Alkaline batteries: about 5 hours | |
| NiMH batteries (1900 mAh): about 5 hours | |
| Lithium batteries: about 11 hours | |
| • The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. |
| 5 W maximum |
| 256 mm (W) × 158 mm (D) × 61 mm (H) |
| 827 g |
| NOTE: 0 DBU = 0.775 VRMS |
