Specification :
| Items | Parameter |
|---|---|

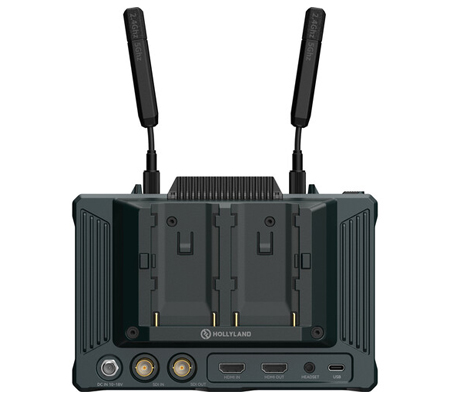

| Input Port | HDMI 1.4b + 3G SDI |
| Output Port | HDMI 1.4b + 3G SDI |
| HDMI 1.4b + 3G SDI | RP-SMA Male*2 |
| Power Input | DC Input (2.0mm core socket) |
| Headphone Jack | 3.5mm |

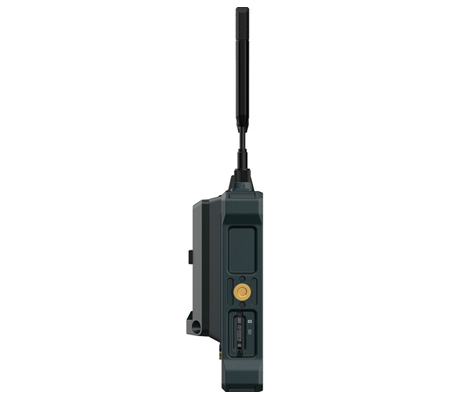

| Upgrade Port | USB-C (USB 2.0 OTG) SD Card Slot |
| Screen Size | 7" Touchscreen |
| Screen Resolution | 1920 × 1200 pixels |
| Pixel Density | 323 PPI |
| Aspect Ratio | 16:9 |
| Screen Brightness | 1200 nits |
| Contrast Ratio | 1000:1 |
| Power Input Voltage | 10 - 18V/2.5A DC Input (nominal 12V) |
| Power Consumption | < 22W |
| Net Weight | 545g (19.2oz) with battery plate included and external antennas excluded |
| Dimensions (L × W × H) | 180 × 127 × 31.8mm (7.1" × 5" × 1.25") with battery plate and external antennas excluded |
| Operating Frequency | 5.1 - 5.8 GHz; 2.412 - 2.484 GHz |
| Transmit Power | ≤ 23 dBm |
| Receiver Sensitivity | -80 dBm |
| Display Latency | < 50ms |
| Transmission Latency | ≈ 60ms (test data when 1080p60 signals are transmitted in a laboratory) |
| LOS Range | •1,300ft (400m)* (Connection to the monitoring app may affect the range); •650ft (200m)* (in Broadcast mode) |
| Bandwidth | 20 MHz; 40 MHz (in Broadcast mode) |
| Audio Format | HDMI 1.4b 8-Channel |
| Operating Temperature | - 10? - 45? |
| Storage Temperature | - 40? - 60? |
| HDMI Input 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.97/30 1080p50/59.94/60 3840*2160 23.98/24/25/29.97/30 | HDMI Loopout? 720p50/59.94/60?1080i50/59.94/60?1080p23.98/24/25/29.97/30?1080p50/59.94/60 3840*2160 23.98/24/25/29.97/30? SDI Loopout 720p50/60 1080i50/60 1080p24/25/30 1080p 50/60 1920*1080 24/25/30 HDMI/SDI Output 720p50/60 1080i50/60 1080p24/25/30 1080p 50/60 1920*1080 24/25/30 |
